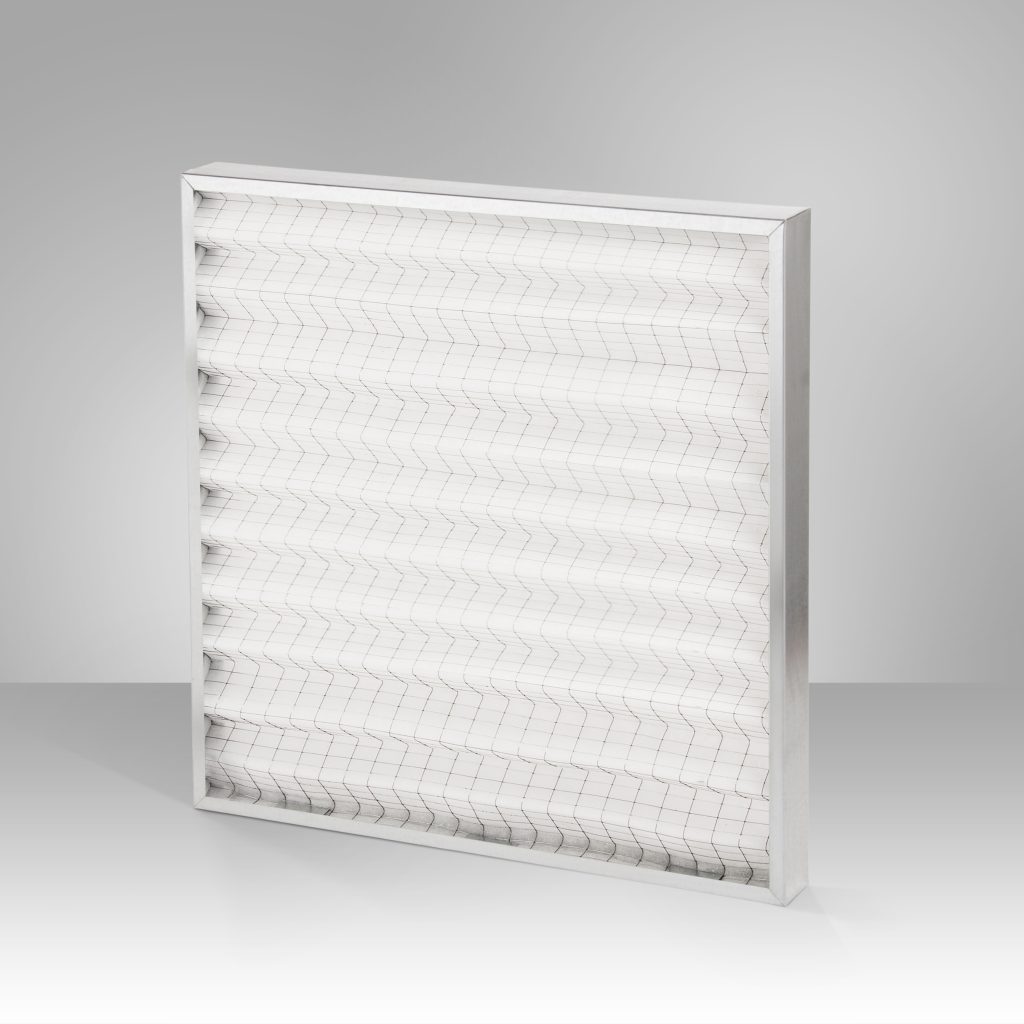

Pleated Cell
Pleated Cell filters are mostly applied as pre-filters in coating chambers, spray booths, welding fume extraction systems and other systems in HVAC sector, surface treatment and dust & pollution control fields, when a high dust holding capacity is required.
Specifications
- Product code
- KAS W
- Frame material
- ZN coated metal
- Gasket
- Optional
- Regeneration
- Washable
- Max. Operating Temperature
- 100 C
- Max. Relative humidity
- 95%
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| KASW | 592×287×48 | G4 ISO Coarse 60% | 80 Pa @ 1600 m³/h |
| KASW | 592×592×48 | G4 ISO Coarse 60% | 80 Pa @ 3250 m³/h |
| KASW | 592×287×96 | G4 ISO Coarse 60% | 80 Pa @ 1850 m³/h |
| KASW | 592×592×96 | G4 ISO Coarse 60% | 80 Pa @ 3800 m³/h |
Applications
