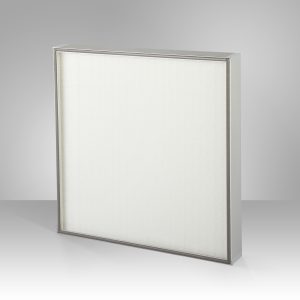

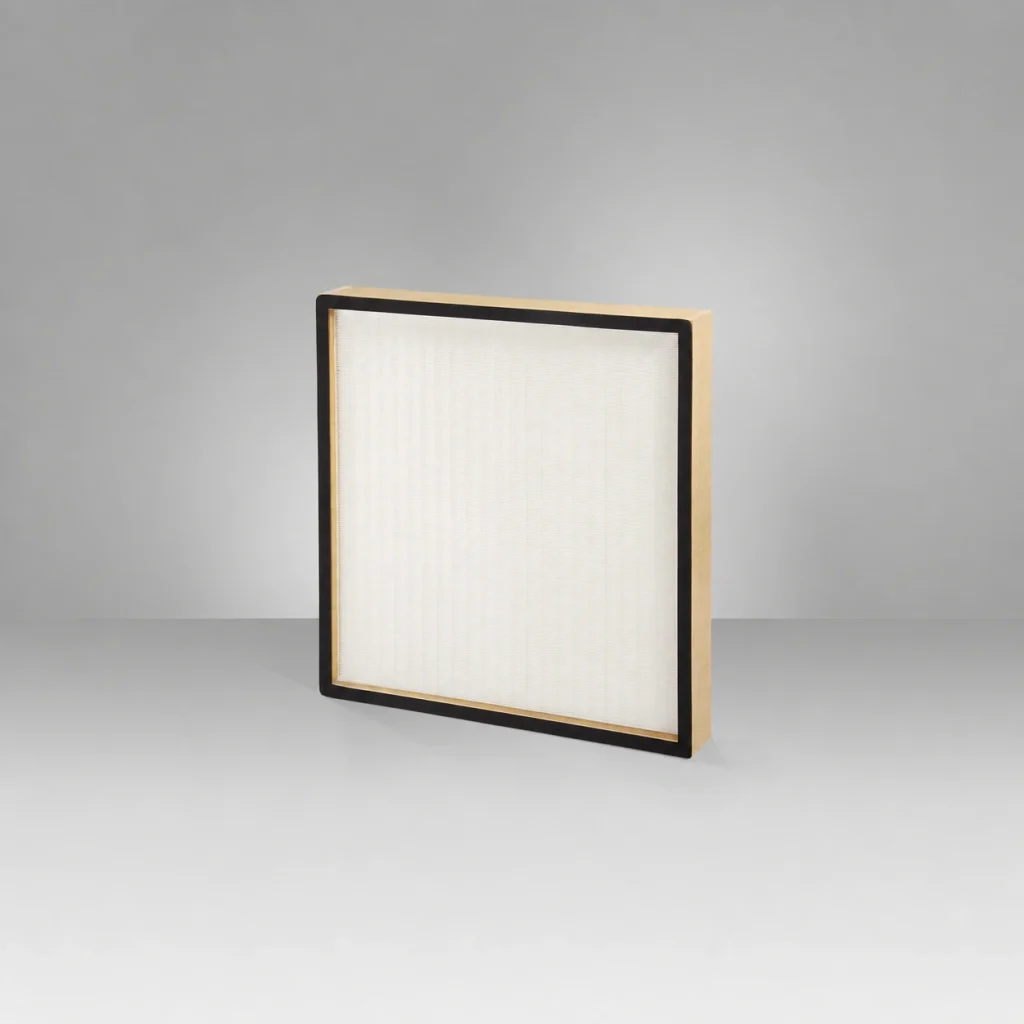

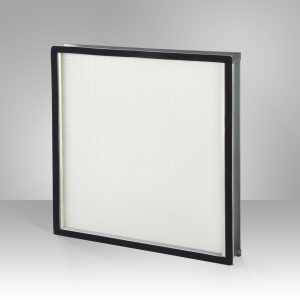

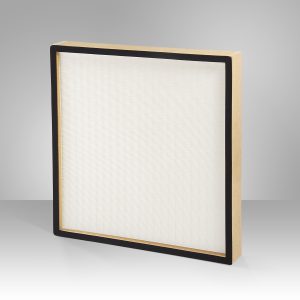

High Efficiency filter
High Efficiency EPA/HEPA filters find their application in air supply, circulation and exhaust systems of medical facilities, laboratories, food industry and other sensitive fields, where demands for clean air are highest.
Specifications
- Product code
- HEPA
- Frame material
- Optional
- Pleat separators
- Thermoplastic adheisive
- Casting
- Polyurethane
- Gasket
- PUR gasket
- Regeneration
- No
- Max. Operating Temperature
- 70 C
- Max. Relative humidity
- 90%
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| HEPA | 305*305*78 | E10 | 110 Pa @ 300 m³/h |
| HEPA | 457*457*78 | E10 | 110 Pa @ 700 m³/h |
| HEPA | 610*610*78 | E10 | 110 Pa @ 1250 m³/h |
| HEPA | 305*305*150 | E10 | 110 Pa @ 300 m³/h |
| HEPA | 457*457*150 | E10 | 110 Pa @ 700 m³/h |
| HEPA | 610*610*150 | E10 | 110 Pa @ 1250 m³/h |
| HEPA | 305*305*292 | E10 | 110 Pa @ 450 m³/h |
| HEPA | 457*457*292 | E10 | 110 Pa @ 1000 m³/h |
| HEPA | 610*610*292 | E10 | 110 Pa @ 1750 m³/h |
| HEPA | 305*305*78 | E11 | 125 Pa @ 300 m³/h |
| HEPA | 457*457*78 | E11 | 125 Pa @ 650 m³/h |
| HEPA | 610*610*78 | E11 | 125 Pa @ 1200 m³/h |
| HEPA | 305*305*150 | E11 | 125 Pa @ 300 m³/h |
| HEPA | 457*457*150 | E11 | 125 Pa @ 650 m³/h |
| HEPA | 610*610*150 | E11 | 125 Pa @ 1200 m³/h |
| HEPA | 305*305*292 | E11 | 125 Pa @ 420 m³/h |
| HEPA | 457*457*292 | E11 | 125 Pa @ 950 m³/h |
| HEPA | 610*610*292 | E11 | 125 Pa @ 1700 m³/h |
| HEPA | 305*305*78 | E12 | 140 Pa @ 300 m³/h |
| HEPA | 457*457*78 | E12 | 140 Pa @ 650 m³/h |
| HEPA | 610*610*78 | E12 | 140 Pa @ 1200 m³/h |
| HEPA | 305*305*150 | E12 | 140 Pa @ 300 m³/h |
| HEPA | 457*457*150 | E12 | 140 Pa @ 650 m³/h |
| HEPA | 610*610*150 | E12 | 140 Pa @ 1200 m³/h |
| HEPA | 305*305*292 | E12 | 140 Pa @ 420 m³/h |
| HEPA | 457*457*292 | E12 | 140 Pa @ 950 m³/h |
| HEPA | 610*610*292 | E12 | 140 Pa @ 1700 m³/h |
| HEPA | 305*305*78 | H13 | 250 Pa @ 250 m³/h |
| HEPA | 457*457*78 | H13 | 250 Pa @ 550 m³/h |
| HEPA | 610*610*78 | H13 | 250 Pa @ 1000 m³/h |
| HEPA | 305*305*150 | H13 | 250 Pa @ 250 m³/h |
| HEPA | 457*457*150 | H13 | 250 Pa @ 550 m³/h |
| HEPA | 610*610*150 | H13 | 250 Pa @ 1000 m³/h |
| HEPA | 305*305*292 | H13 | 250 Pa @ 420 m³/h |
| HEPA | 457*457*292 | H13 | 250 Pa @ 950 m³/h |
| HEPA | 610*610*292 | H13 | 250 Pa @ 1700 m³/h |
| HEPA | 305*305*78 | H14 | 250 Pa @ 250 m³/h |
| HEPA | 457*457*78 | H14 | 250 Pa @ 550 m³/h |
| HEPA | 610*610*78 | H14 | 250 Pa @ 1000 m³/h |
| HEPA | 305*305*150 | H14 | 250 Pa @ 250 m³/h |
| HEPA | 457*457*150 | H14 | 250 Pa @ 550 m³/h |
| HEPA | 610*610*150 | H14 | 250 Pa @ 1000 m³/h |
| HEPA | 305*305*292 | H14 | 250 Pa @ 420 m³/h |
| HEPA | 457*457*292 | H14 | 250 Pa @ 950 m³/h |
| HEPA | 610*610*292 | H14 | 250 Pa @ 1700 m³/h |
305*305*78110 Pa @ 300 m³/h
457*457*78110 Pa @ 700 m³/h
610*610*78110 Pa @ 1250 m³/h
305*305*150110 Pa @ 300 m³/h
457*457*150110 Pa @ 700 m³/h
610*610*150110 Pa @ 1250 m³/h
305*305*292110 Pa @ 450 m³/h
457*457*292110 Pa @ 1000 m³/h
610*610*292110 Pa @ 1750 m³/h
305*305*78125 Pa @ 300 m³/h
457*457*78125 Pa @ 650 m³/h
610*610*78125 Pa @ 1200 m³/h
305*305*150125 Pa @ 300 m³/h
457*457*150125 Pa @ 650 m³/h
610*610*150125 Pa @ 1200 m³/h
305*305*292125 Pa @ 420 m³/h
457*457*292125 Pa @ 950 m³/h
610*610*292125 Pa @ 1700 m³/h
305*305*78140 Pa @ 300 m³/h
457*457*78140 Pa @ 650 m³/h
610*610*78140 Pa @ 1200 m³/h
305*305*150140 Pa @ 300 m³/h
457*457*150140 Pa @ 650 m³/h
610*610*150140 Pa @ 1200 m³/h
305*305*292140 Pa @ 420 m³/h
457*457*292140 Pa @ 950 m³/h
610*610*292140 Pa @ 1700 m³/h
305*305*78250 Pa @ 250 m³/h
457*457*78250 Pa @ 550 m³/h
610*610*78250 Pa @ 1000 m³/h
305*305*150250 Pa @ 250 m³/h
457*457*150250 Pa @ 550 m³/h
610*610*150250 Pa @ 1000 m³/h
305*305*292250 Pa @ 420 m³/h
457*457*292250 Pa @ 950 m³/h
610*610*292250 Pa @ 1700 m³/h
305*305*78250 Pa @ 250 m³/h
457*457*78250 Pa @ 550 m³/h
610*610*78250 Pa @ 1000 m³/h
305*305*150250 Pa @ 250 m³/h
457*457*150250 Pa @ 550 m³/h
610*610*150250 Pa @ 1000 m³/h
305*305*292250 Pa @ 420 m³/h
457*457*292250 Pa @ 950 m³/h
610*610*292250 Pa @ 1700 m³/h
Applications
Healthcare & pharmaceuticals
Electronics & optics
Food & beverage
