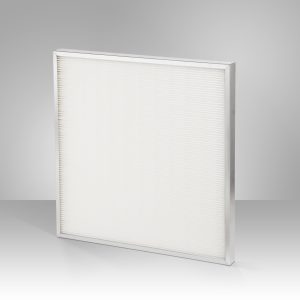

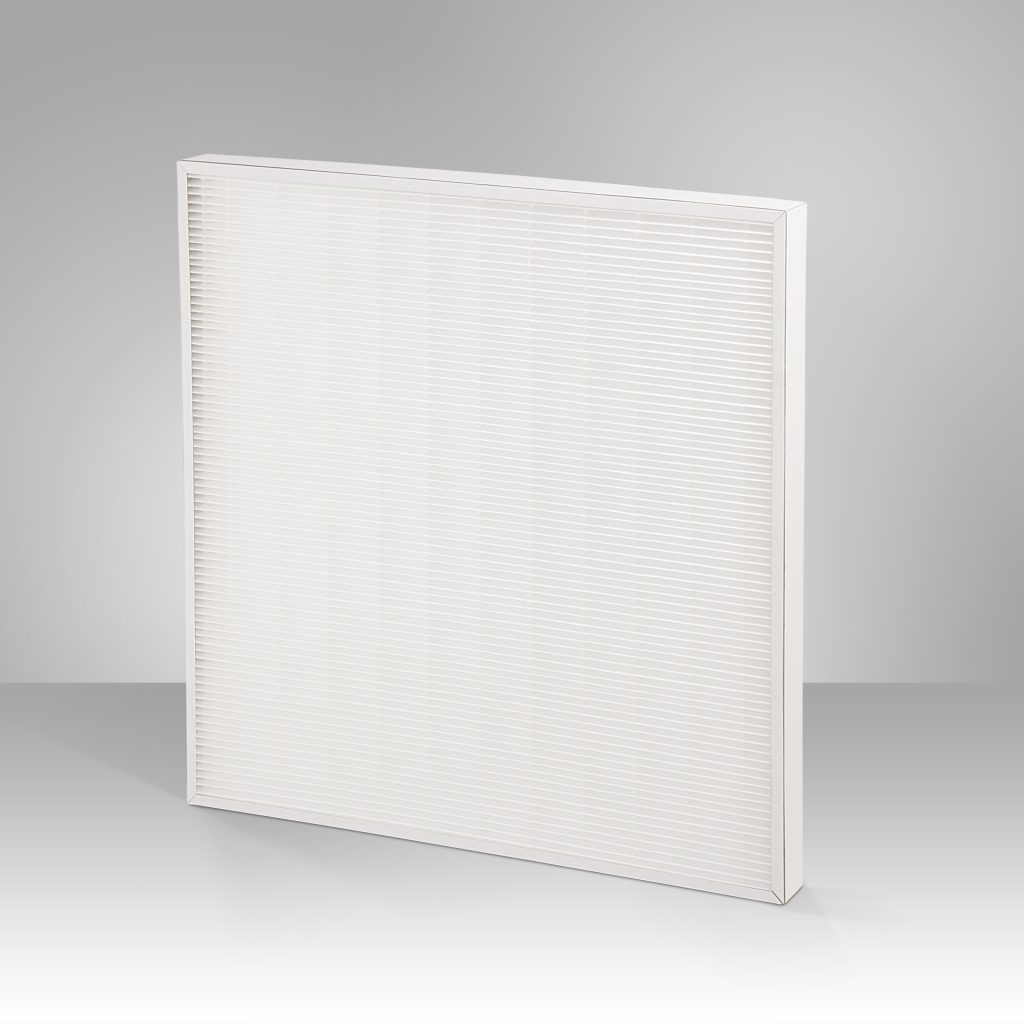

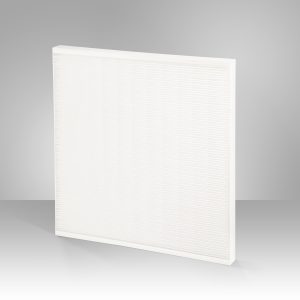

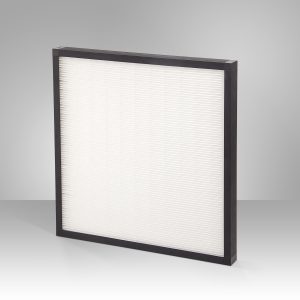

Deep Pleat
Panel filter with V-shape deep-pleat HES media that puts the maximum filtration area to work at a low pressure drop. Used for particle filtration in offices, industrial plants, hospitals and hotels.
- Thermoplastic-bonded V-shape pack - full use of the filtration area, uniform dust spread
- Low average pressure drop over the service life, for lower fan energy
- Can be used to upgrade existing installations
- Configurable frame, gasket, face guard and handle
- Classified to ISO 16890
Specifications
- Product code
- MPL
- Efficiency (ISO 16890)
- ePM10 55% to ePM1 85%
- Frame material
- Optional
- Pleat separators
- Thermoplastic adhesive
- Casting
- Optional
- Gasket
- Optional
- Regeneration
- No
- Max. operating temperature
- 80 °C
- Max. relative humidity
- 90 %
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| MPL | 592×592×25 | M5 ISO ePM10 55% | 60 Pa @ 2000 m³/h |
| MPL | 592×592×46 | M5 ISO ePM10 55% | 60 Pa @ 2250 m³/h |
| MPL | 592×592×92 | M5 ISO ePM10 55% | 75 Pa @ 2500 m³/h |
| MPL | 592×592×25 | F7 ISO ePM1 70% | 60 Pa @ 1000 m³/h |
| MPL | 592×592×46 | F7 ISO ePM1 70% | 100 Pa @ 2250 m³/h |
| MPL | 592×592×92 | F7 ISO ePM1 70% | 140 Pa @ 2500 m³/h |
| MPL | 592×592×25 | F9 ISO ePM1 85% | 110 Pa @ 1000 m³/h |
| MPL | 592×592×46 | F9 ISO ePM1 85% | 110 Pa @ 1100 m³/h |
| MPL | 592×592×92 | F9 ISO ePM1 85% | 170 Pa @ 2000 m³/h |
592×592×2560 Pa @ 2000 m³/h
592×592×4660 Pa @ 2250 m³/h
592×592×9275 Pa @ 2500 m³/h
592×592×2560 Pa @ 1000 m³/h
592×592×46100 Pa @ 2250 m³/h
592×592×92140 Pa @ 2500 m³/h
592×592×25110 Pa @ 1000 m³/h
592×592×46110 Pa @ 1100 m³/h
592×592×92170 Pa @ 2000 m³/h
Applications
Healthcare & pharmaceuticals
Electronics & optics
Industry & painting
Food & beverage
Energy & systems
Commercial buildings
