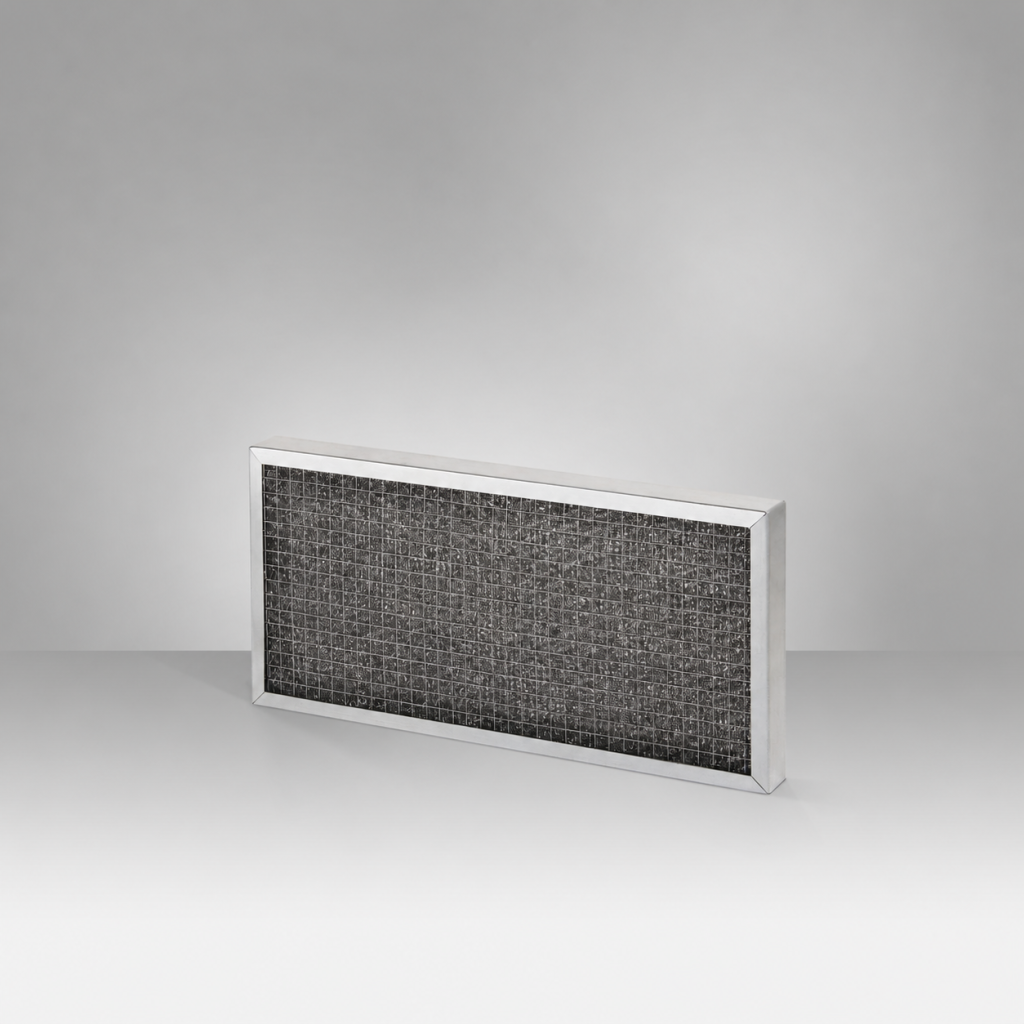

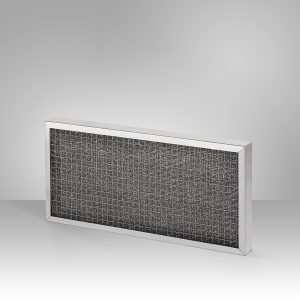

Grease filter
Grease air filters are designed for filtering sticky fumes and smoke. Adhesive particles in the air - condense on the surface of the metal filter, protect the ventilation system from damage and the formation of viscous slag. Widely used in food, metal and welding industries.
Specifications
- Product code
- RF
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| RF | 592×287×22 | G2 ISO Coarse 50% | 26 Pa @ 1225 m³/h |
| RF | 592×592×22 | G2 ISO Coarse 50% | 26 Pa @ 2525 m³/h |
| RF | 592×592×48 | G2 ISO Coarse 50% | 32 Pa @ 1225 m³/h |
| RF | 592×592×48 | G2 ISO Coarse 50% | 32 Pa @ 2525 m³/h |
592×287×2226 Pa @ 1225 m³/h
592×592×2226 Pa @ 2525 m³/h
592×592×4832 Pa @ 1225 m³/h
592×592×4832 Pa @ 2525 m³/h
Applications
Industry & painting
Food & beverage
