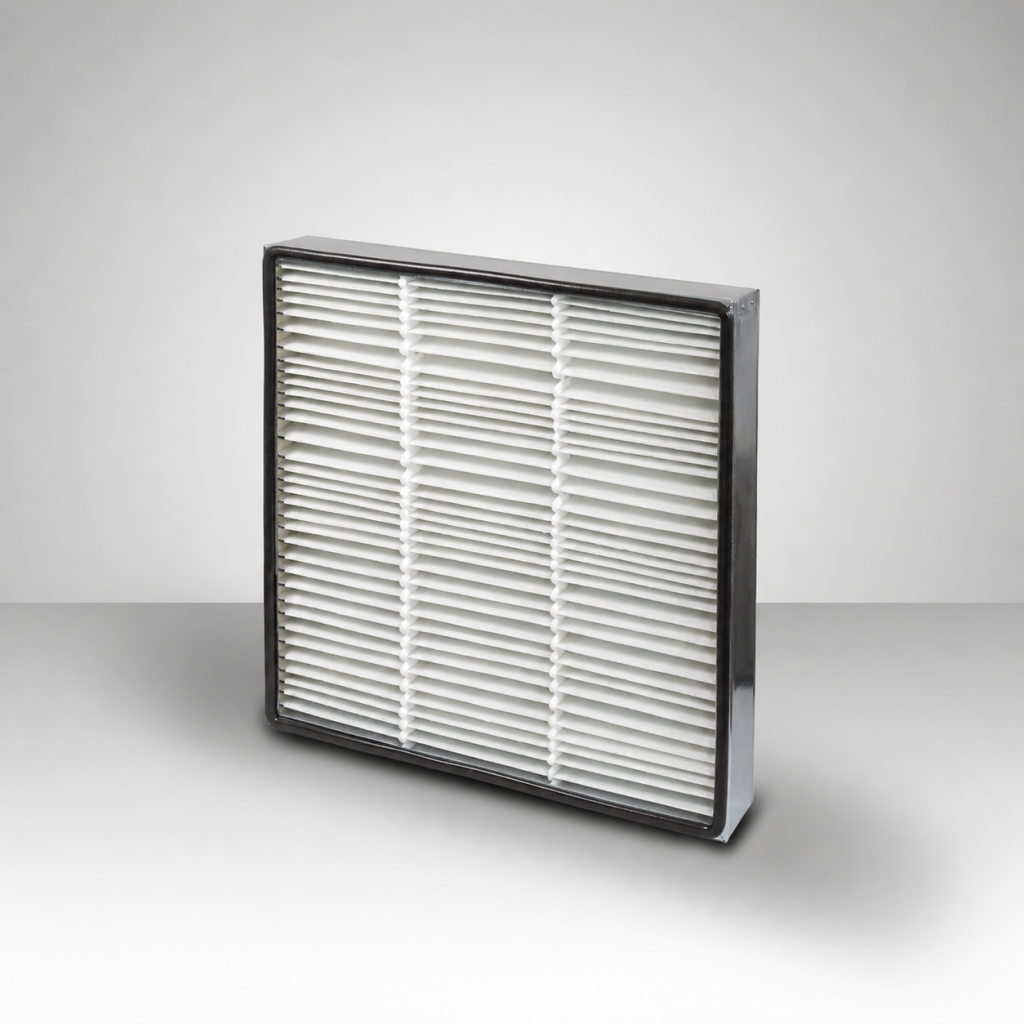

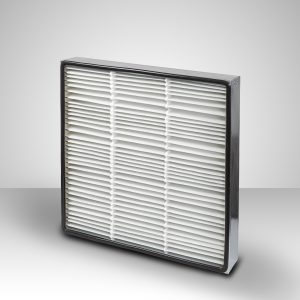

GT pleat – High Airflow
Reinforced panel filters for aggressive environments & high airflow applications. Main place of use - as primary and secondary stage filtration element in complex, multiple-step filtration systems.
Specifications
- Product code
- MPLZ
- Frame material
- Metal
- Pleat separators
- Hot Melt
- Casting
- Optional
- Regeneration
- No
- Max. Operating Temperature
- 90C
- Max. Relative humidity
- 90 %
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| MPLZ | 592×592×96 | G4 ISO Coarse 75% | 70 Pa @ 5000 m³/h |
| MPLZ | 592×592×96 | M5 ISO ePM10 60% | 100 Pa @ 5000 m³/h |
592×592×9670 Pa @ 5000 m³/h
592×592×96100 Pa @ 5000 m³/h
Applications
Industry & painting
Energy & systems
