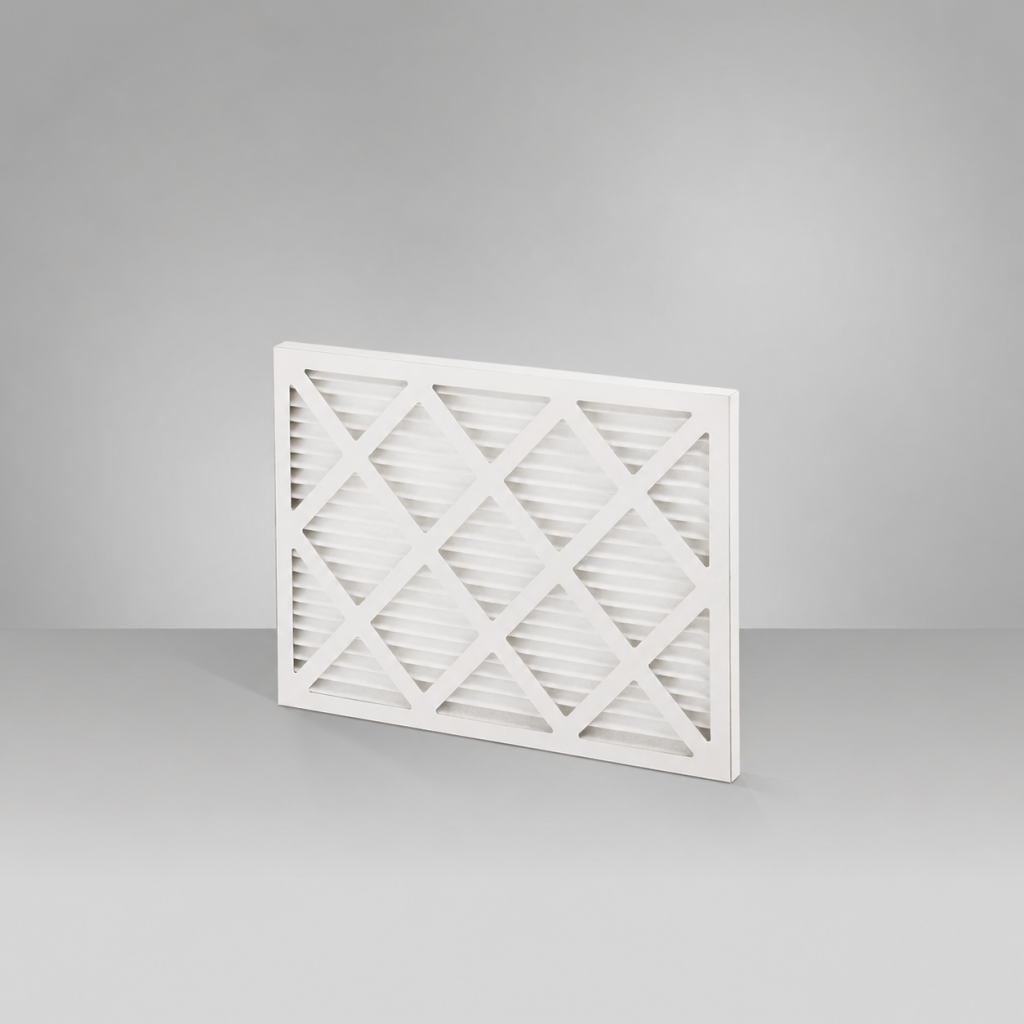

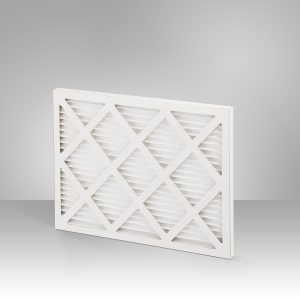

Z-line Cell
Z-line Cell filters are mostly applied as pre-filters in coating chambers, spray booths, welding fume extraction systems, other HVAC systems and a wide range of industries. They are compatible with all types of air handling units and special appliances that require compact filter sizes and reliable way to replace pocket filters for long-term use.
Specifications
- Product code
- MPL ZC
- Frame material
- Cardboard
- Pleat separators
- None
- Casting
- Hot melt
- Gasket
- Optional
- Regeneration
- No
- Max. Operating Temperature
- 70 C
- Max. Relative humidity
- 100%
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| MPLC | 592×592×25 | G4 ISO Coarse 75% | 35 Pa @ 2000 m³/h |
| MPLC | 592×592×46 | G4 ISO Coarse 75% | 39 Pa @ 2500 m³/h |
| MPLC | 592×592×92 | G4 ISO Coarse 75% | 40 Pa @ 3400 m³/h |
| MPLC | 592×592×25 | M5 ISO ePM10 60% | 45 Pa @ 2000 m³/h |
| MPLC | 592×592×46 | M5 ISO ePM10 60% | 45 Pa @ 2500 m³/h |
| MPLC | 592×592×92 | M5 ISO ePM10 60% | 60 Pa @ 3400 m³/h |
592×592×2535 Pa @ 2000 m³/h
592×592×4639 Pa @ 2500 m³/h
592×592×9240 Pa @ 3400 m³/h
592×592×2545 Pa @ 2000 m³/h
592×592×4645 Pa @ 2500 m³/h
592×592×9260 Pa @ 3400 m³/h
Applications
Healthcare & pharmaceuticals
Electronics & optics
Industry & painting
Food & beverage
Energy & systems
