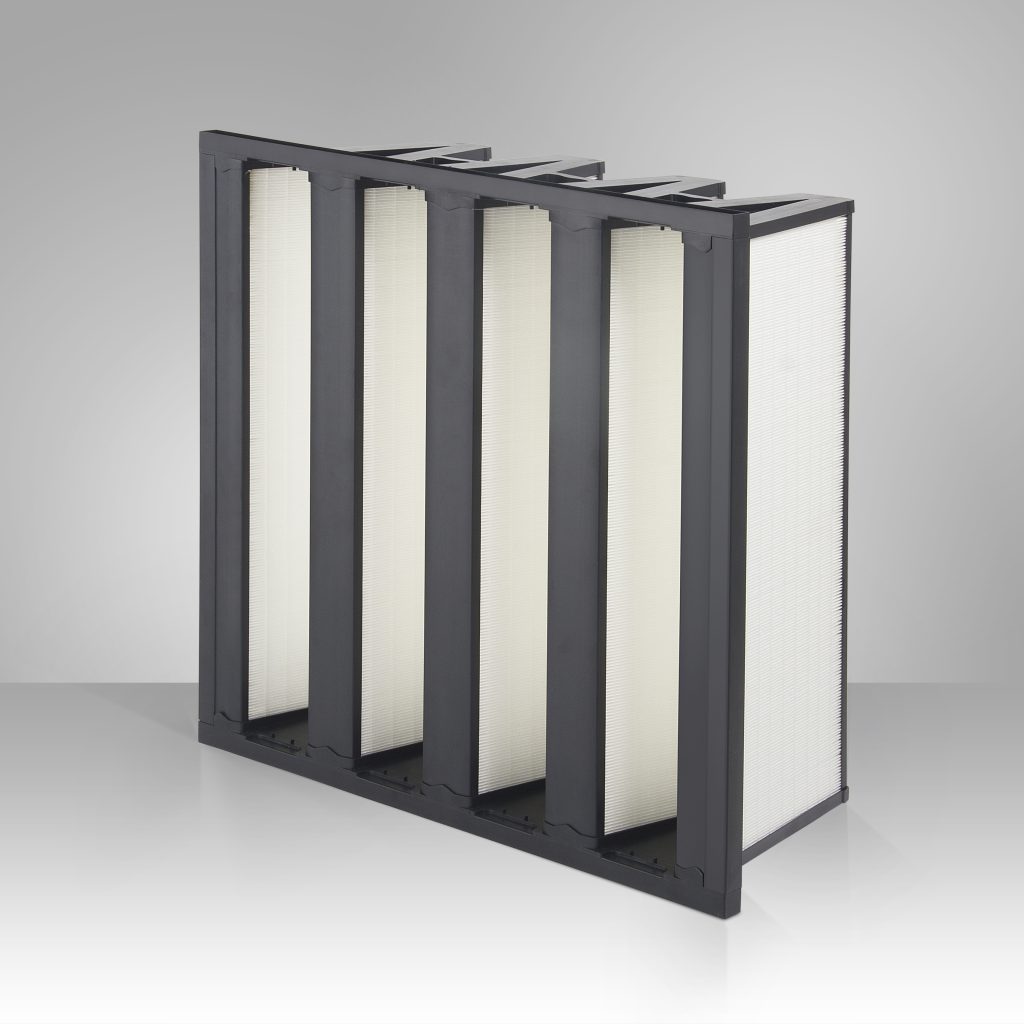

V-Cell GT Hi-Flow
V-Cell GT Hi-Flow (compact GT) filters are particularly suitable for pre-filtration and filtration of incoming air in nuclear sector and gas turbines, compressors and related power systems.
Specifications
- Product code
- KOM GT V4
- Frame material
- Shock resistant PS plastic
- Pleat separators
- Thermoplastic adheisive
- Casting
- Polyurethane
- Gasket
- Optional
- Regeneration
- Pulse
- Max. Operating Temperature
- 70 C
- Max. Relative humidity
- 90%
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| KOM | 592×592×292 | F7 ISO ePM1 70% | 117 Pa @ 4250 m³/h |
| KOM | 592×592×292 | F8 ISO ePM1 75% | 145 Pa @ 4250 m³/h |
| KOM | 592×592×292 | F9 ISO ePM1 80% | 170 Pa @ 4250 m³/h |
592×592×292117 Pa @ 4250 m³/h
592×592×292145 Pa @ 4250 m³/h
592×592×292170 Pa @ 4250 m³/h
