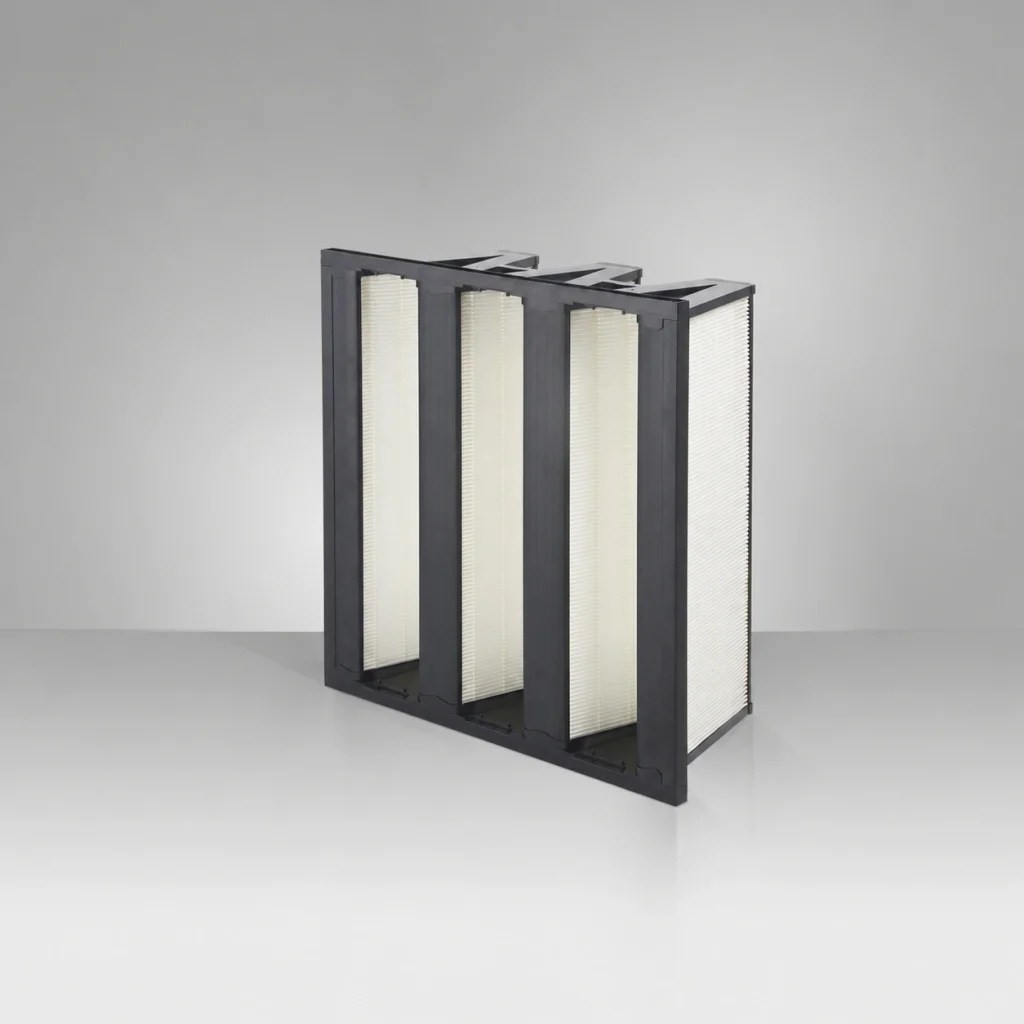

V-Cell product shot

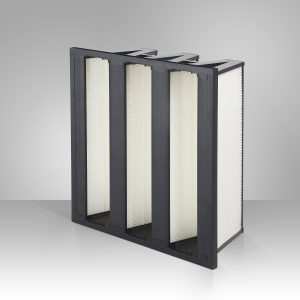

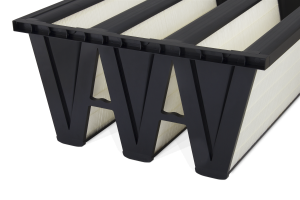

V-Cell

V-Cell (compact) filters are typically utilised as second- or last-stage air filtration solutions in medical facilities, laboratories, food industry, and HVAC sector.

Specifications

Product code: KOM V3
Frame material: Shock resistant PS plastic
Pleat separators: Thermoplastic adheisive
Casting: Polyurethane
Gasket: Optional
Regeneration: Pulse
Max. Operating Temperature: 70 C
Max. Relative humidity: 90%

Standard sizes & classes

Code	Size (X×Y×Z mm)	Filter class	Nominal volume
KOM	592×287×292	M5 ISO ePM10 50%	60 Pa @ 1650 m³/h
KOM	592×490×292	M5 ISO ePM10 50%	60 Pa @ 2800 m³/h
KOM	592×592×292	M5 ISO ePM10 50%	60 Pa @ 3400 m³/h
KOM	592×287×292	F7 ISO ePM1 70%	85 Pa @ 1650 m³/h
KOM	592×490×292	F7 ISO ePM1 70%	85 Pa @ 2800 m³/h
KOM	592×592×292	F7 ISO ePM1 70%	85 Pa @ 3400 m³/h
KOM	592×287×292	F9 ISO ePM1 85%	100 Pa @ 1360 m³/h
KOM	592×490×292	F9 ISO ePM1 85%	100 Pa @ 2320 m³/h
KOM	592×592×292	F9 ISO ePM1 85%	100 Pa @ 2800 m³/h

592×287×29260 Pa @ 1650 m³/h

592×490×29260 Pa @ 2800 m³/h

592×592×29260 Pa @ 3400 m³/h

592×287×29285 Pa @ 1650 m³/h

592×490×29285 Pa @ 2800 m³/h

592×592×29285 Pa @ 3400 m³/h

592×287×292100 Pa @ 1360 m³/h

592×490×292100 Pa @ 2320 m³/h

592×592×292100 Pa @ 2800 m³/h

Applications

Healthcare & pharmaceuticals

Electronics & optics

Industry & painting

Food & beverage

Energy & systems
