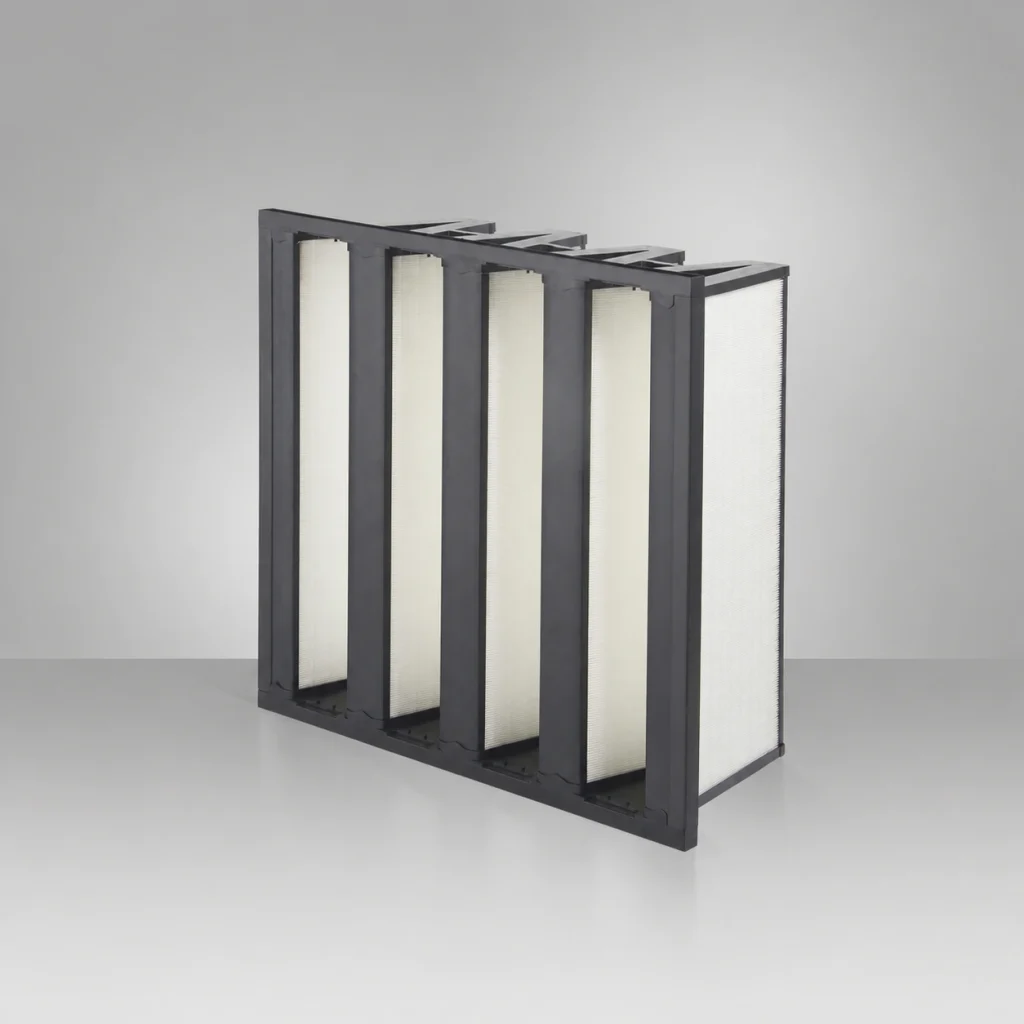

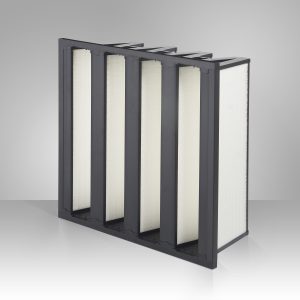

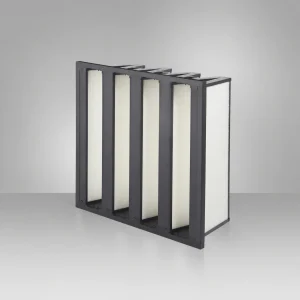

V-Cell Hi-Flow
V-Cell Hi-Flow (compact) filters are typically utilised as second- or last- stage air filtration solutions in medical facilities, laboratories, food industry, and HVAC sector. These filters are used in places, where high air flow and large filtration area is required.
Specifications
- Product code
- KOM V4
- Frame material
- Shock resistant PS plastic
- Pleat separators
- Thermoplastic adheisive
- Casting
- Polyurethane
- Gasket
- Optional
- Regeneration
- Pulse
- Max. Operating Temperature
- 70 C
- Max. Relative humidity
- 90%
Standard sizes & classes
| Code | Size (X×Y×Z mm) | Filter class | Nominal volume |
|---|---|---|---|
| KOM | 592×287×292 | M5 ISO ePM10 50% | 60 Pa @ 1650 m³/h |
| KOM | 592×490×292 | M5 ISO ePM10 50% | 60 Pa @ 2800 m³/h |
| KOM | 592×592×292 | M5 ISO ePM10 50% | 60 Pa @ 3400 m³/h |
| KOM | 592×287×292 | F7 ISO ePM1 70% | 85 Pa @ 1650 m³/h |
| KOM | 592×490×292 | F7 ISO ePM1 70% | 85 Pa @ 2800 m³/h |
| KOM | 592×592×292 | F7 ISO ePM1 70% | 85 Pa @ 3400 m³/h |
| KOM | 592×287×292 | F9 ISO ePM1 85% | 100 Pa @ 1350 m³/h |
| KOM | 592×490×292 | F9 ISO ePM1 85% | 100 Pa @ 2320 m³/h |
| KOM | 592×592×292 | F9 ISO ePM1 85% | 100 Pa @ 2800 m³/h |
592×287×29260 Pa @ 1650 m³/h
592×490×29260 Pa @ 2800 m³/h
592×592×29260 Pa @ 3400 m³/h
592×287×29285 Pa @ 1650 m³/h
592×490×29285 Pa @ 2800 m³/h
592×592×29285 Pa @ 3400 m³/h
592×287×292100 Pa @ 1350 m³/h
592×490×292100 Pa @ 2320 m³/h
592×592×292100 Pa @ 2800 m³/h
Applications
Healthcare & pharmaceuticals
Electronics & optics
Industry & painting
Energy & systems
Commercial buildings
