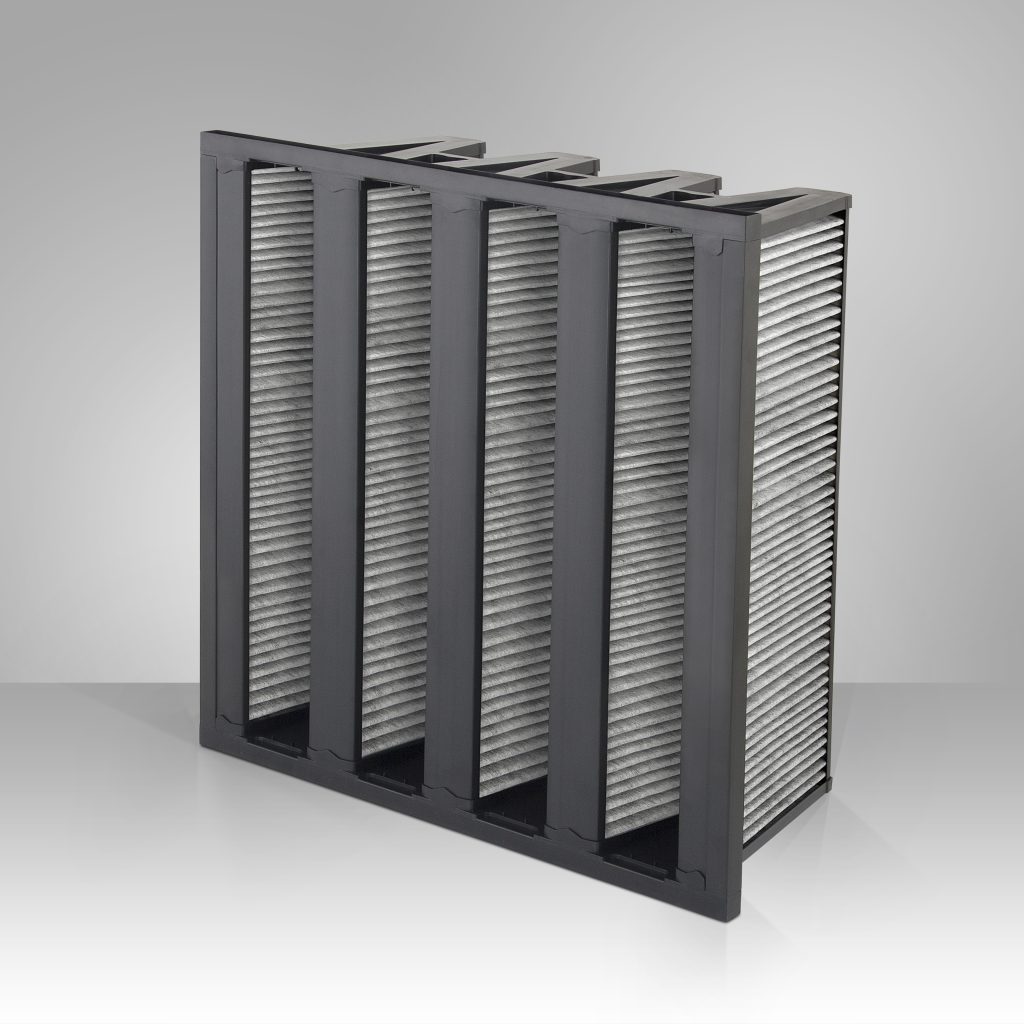

V-Cell Pure Hi-Flow with activated carbon

V-Cell Pure Hi-Flow

V-Cell Pure Hi-Flow (compact AC) filters are devoted to filter and purify air from odors of kitchen, tobacco, etc. in office buildings, shopping centers, schools and other public buildings situated in urban areas with heavy traffic. These filters are used in places, where high air flow and large filtration area is required.

Specifications

Product code: KOM AC V4
Frame material: Shock resistant PS plastic
Pleat separators: None
Casting: Polyurethane
Gasket: Optional
Regeneration: Pulse
Max. Operating Temperature: 70 C
Max. Relative humidity: 90%

Standard sizes & classes

Code	Size (X×Y×Z mm)	Filter class	Nominal volume
KOM AC	592×287×292	G4 ISO ePM10 50%	50 Pa @ 1500 m³/h
KOM AC	592×490×292	G4 ISO ePM10 50%	50 Pa @ 2500 m³/h
KOM AC	592×592×292	G4 ISO ePM10 50%	50 Pa @ 3000 m³/h
KOM AC	592×287×292	F7 ISO ePM1 50%	110 Pa @ 1500 m³/h
KOM AC	592×490×292	F7 ISO ePM1 50%	110 Pa @ 2500 m³/h
KOM AC	592×592×292	F7 ISO ePM1 50%	110 Pa @ 3000 m³/h

592×287×29250 Pa @ 1500 m³/h

592×490×29250 Pa @ 2500 m³/h

592×592×29250 Pa @ 3000 m³/h

592×287×292110 Pa @ 1500 m³/h

592×490×292110 Pa @ 2500 m³/h

592×592×292110 Pa @ 3000 m³/h

Applications

Food & beverage
