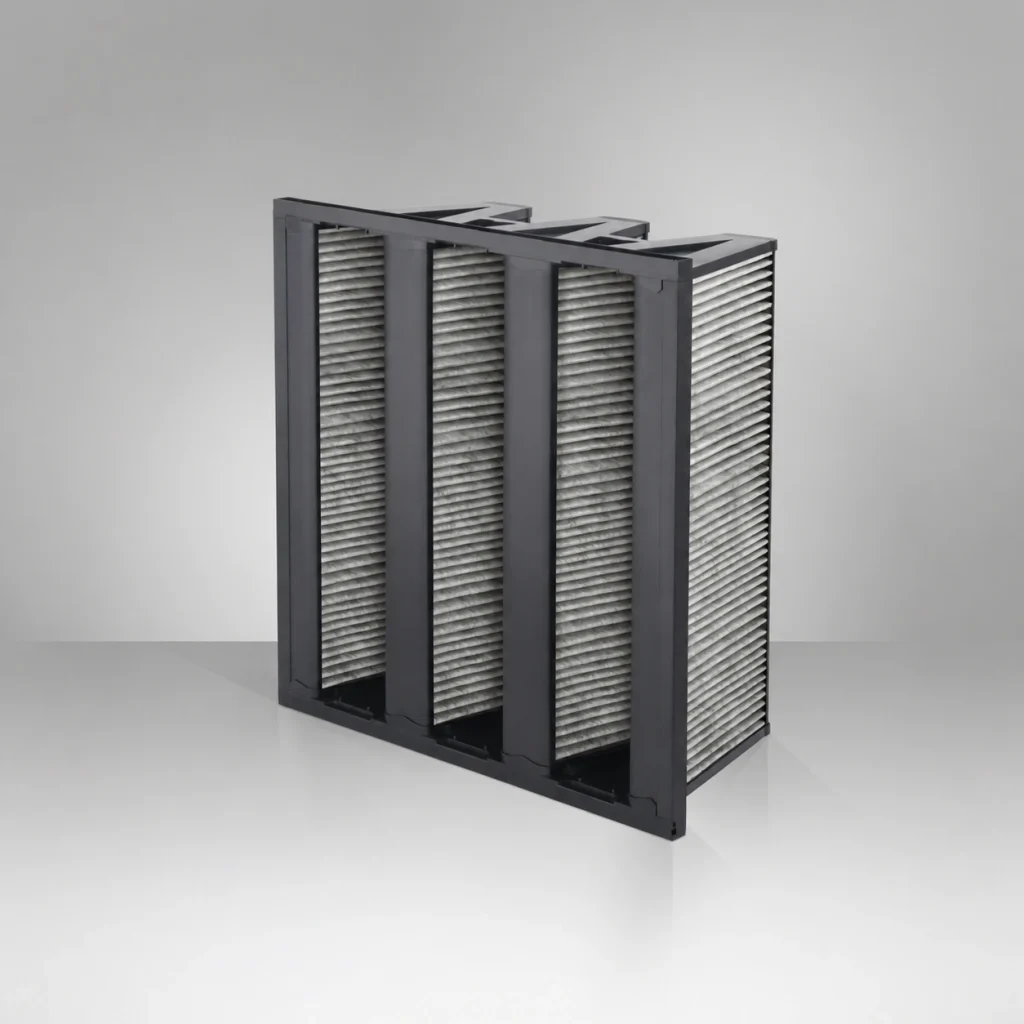

V-Cell Pure product shot

V-Cell Pure

V-Cell Pure (compact AC) filters are devoted to filter and purify air from odors of kitchen, tobacco, etc. in office buildings, shopping centers, schools and other public buildings situated in urban areas with heavy traffic.

Specifications

Product code: KOM AC V3
Frame material: Shock resistant PS plastic
Pleat separators: None
Casting: Polyurethane
Gasket: Optional
Regeneration: Pulse
Max. Operating Temperature: 70 C
Max. Relative humidity: 90%

Standard sizes & classes

Code	Size (X×Y×Z mm)	Filter class	Nominal volume
KOM AC	592×287×292	G4 ISO ePM10 50%	50 Pa @ 1500 m³/h
KOM AC	592×490×292	G4 ISO ePM10 50%	50 Pa @ 2500 m³/h
KOM AC	592×592×292	G4 ISO ePM10 50%	50 Pa @ 3000 m³/h
KOM AC	592×287×292	F7 ISO ePM1 50%	110 Pa @ 1500 m³/h
KOM AC	592×490×292	F7 ISO ePM1 50%	110 Pa @ 2500 m³/h
KOM AC	592×592×292	F7 ISO ePM1 50%	110 Pa @ 3000 m³/h

592×287×29250 Pa @ 1500 m³/h

592×490×29250 Pa @ 2500 m³/h

592×592×29250 Pa @ 3000 m³/h

592×287×292110 Pa @ 1500 m³/h

592×490×292110 Pa @ 2500 m³/h

592×592×292110 Pa @ 3000 m³/h

Applications

Healthcare & pharmaceuticals

Food & beverage

Commercial buildings
